1*1.2m immersion pillow plate stainless steel 316 for chiller and ice bank
Introduction

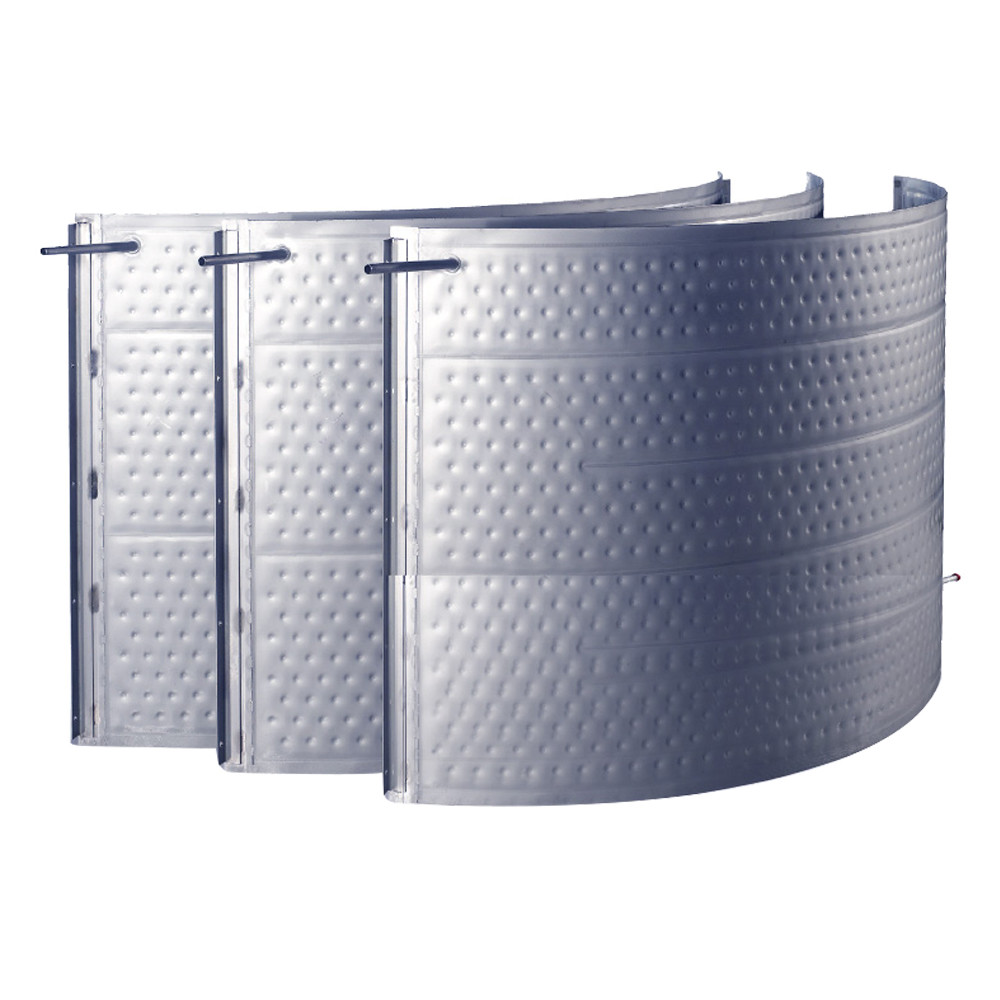

Pillow Plates are heat exchanger plates that can be used in many ways for the industrial cooling or heating of your products, which consists of two stainless steel sheets that are laser welded together by laser welding machine.
Design
Single inflated pillow plates consist of one thick plate and one thin plate, the thin plate will be inflated under high temperature water/air. it can be used for tank jacket.
Double inflated pillow plates consist of two plates with the same thickness, the product will deform on both sides after inflation, the double inflated pillopw plates can be used for ice bank, falling film chiller..etc
Processing
Rolled Plate → Spread → Laser welding → Embossed → Finished
Technical overview
| Product Name | Pillow plate |
| Material | Stainless Steel |
| Color | Nickle White |
| Standard | DIN GB ISO JIS BA ANSI ASMI |
| Grade | SUS201,SUS304,SUS316,TA2,Hastelloy |
| Brand | Hanpu |
| Length | Max.12000mm |
| Width | Max.2000mm |
| Thickness of two sheets |
| Double Embossed Pillow Plate | Single Embossed Pillow Plate |
| Pillow Plate 1.0mm +1.0mm | Pillow Plate 1.0mm+2.5mm |
| Pillow Plate 1.2mm+1.2mm | Pillow Plate 1.2mm+4.0-10mm |
| Pillow Plate 1.5mm+1.5mm | Pillow Plate 1.5mm+4.0-10mm |
Product advantages
- Maintenance-free in dust loaded air
- No expensive interrupts as cleaning takes place during production
- Investment with short pay-back period
- Low maintenance cost
- Compact design and simple installation
- Good thermal operating efficiency due to high heat transfer coefficients
- Heat recovery with constant condensation
Features
1. Available in most materials, like stainless steel 304, 316L,2205 and titanium
2. High operating pressures
3. High operating temperatures
4. Thermally efficient types of heat transfer
5. Immersion heating and cooling.
6. Clamp-on heating, cooling, and temperature maintenance
7. Integral jacketing for heating and cooling
8. Custom heat exchanger design
